A developer working in 2025 researched exploiting a race condition triggered by reading data from an Xbox 360 hard drive (HDD) as part of a planned console exploit [1]. The approach involved modifying the HDD firmware to introduce delays on specific sectors to reliably trigger the bug [1].

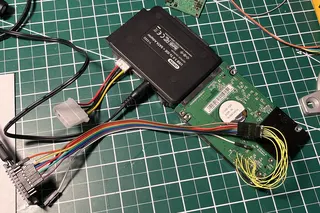

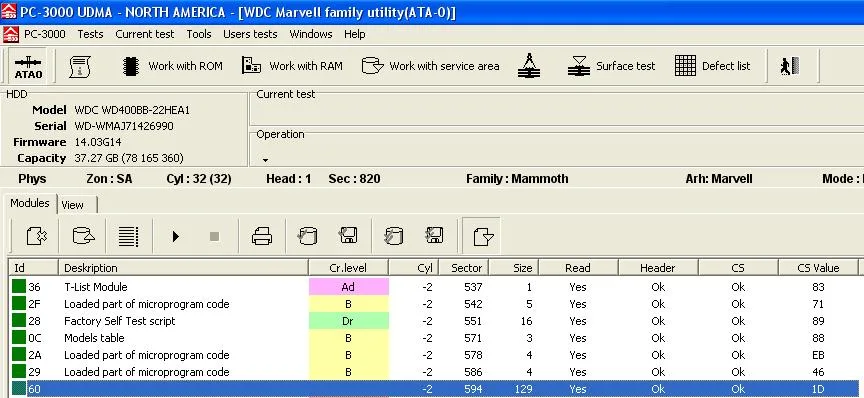

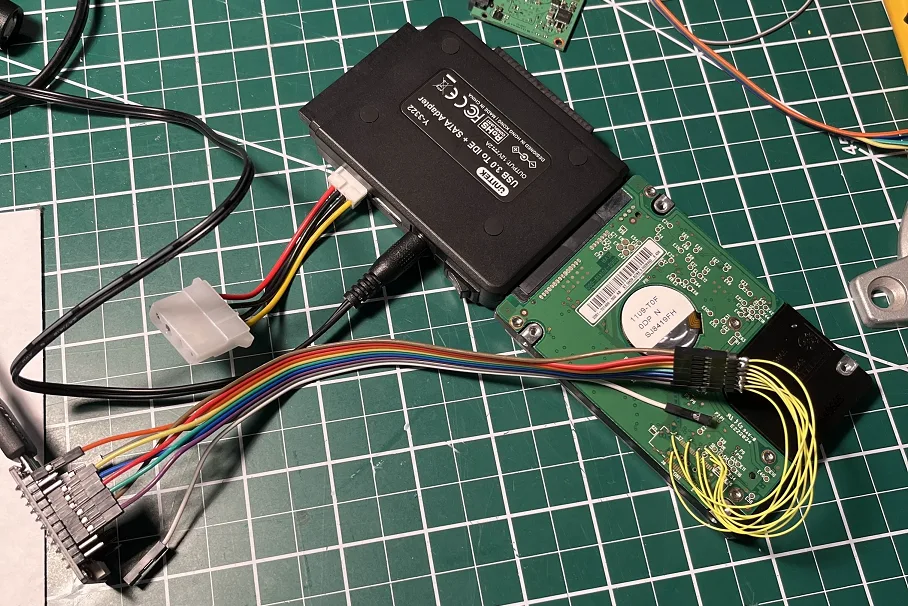

To support these efforts, the developer explored firmware dumping and live debugging via JTAG to analyze both HDD and solid-state drive (SSD) firmware for potential modification points [1, 2]. Firmware dumps were extracted using specialized hardware tools such as PC-3000 data recovery systems [2].

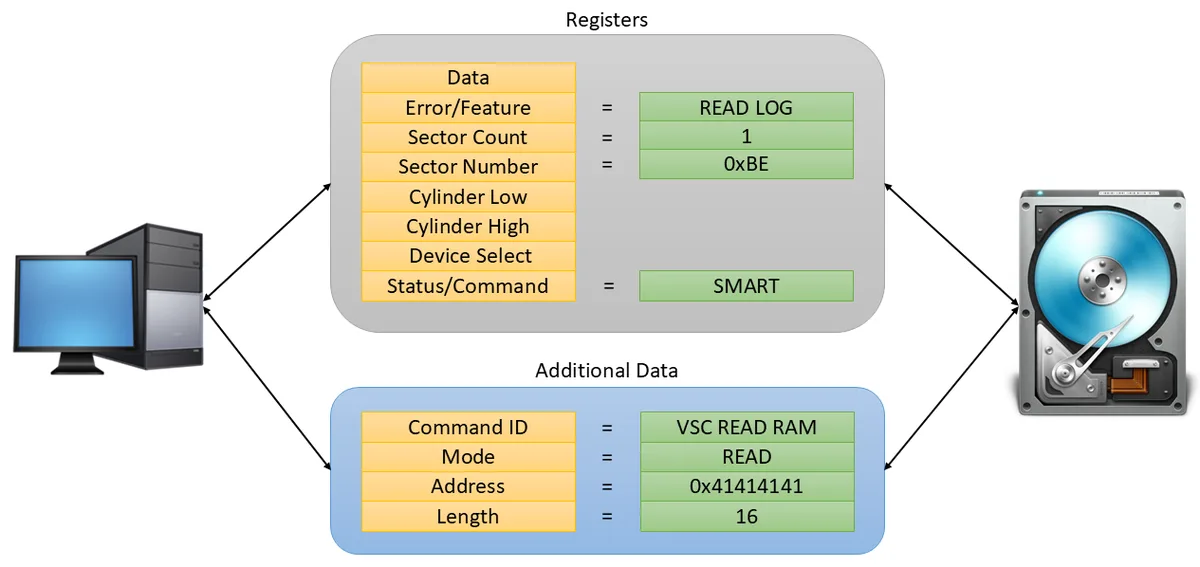

In addition, the developer identified the existence of backdoor vendor commands and diagnostic access through RS-232 ports on some HDD models, which could assist advanced firmware analysis and manipulation [2].
Despite the technical groundwork, the developer ultimately did not need to modify the HDD firmware to exploit the Xbox 360 race condition [1].
The research highlighted a scarcity of up-to-date public information about modifying hard drive firmware, as most existing resources are dated [2].
Hackaday published a detailed article on May 15, 2026, about reverse engineering and modifying hard drive firmware that referenced this work [2].
